TB9T PTFE Wedge mechanical seals from China manufacturer - Ningbo Yinzhou Yichi Auto Part Factory

Payment Terms:	T/T,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TB9T

Standard or Nonstandard: Standard

Material: PTFE

Temperature: -40℃ to +250℃

Speed: 15m/s

Rotary Ring: Antimony Impreg. Carbon Gra...

Spring and Metal Parts: Stainless Steel,Stainless S...

Alternative: TBN,TBT21

Means of Transport: Ocean,Air

Style: Mechanical Seal

Brand Name: yicasting

Pressure: 1.2MPa

Stationary Ring: Silicon Carbide Reaction B...

Secondary Seal: Pure PTFE

Standard: TB16

Applications: Strong corrosive fluids

Alternative:TBN,TBT21
Stainless Steel,Stainless Steel,Hastelloy C-4

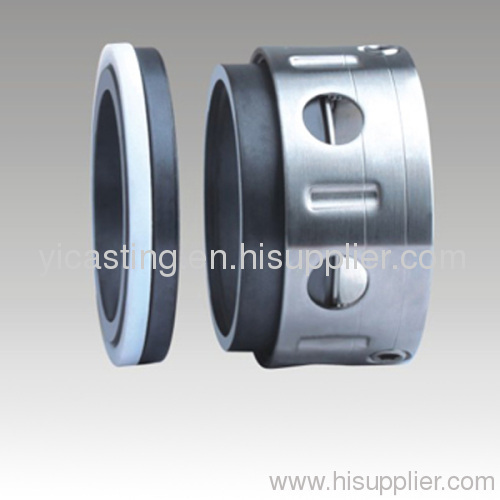

TB9T mechanical seal, for industrial pump, replace the mechanical seal of John Crane 9T

product:TB9T PTFE Wedge mechanical seals for industrial pumpOperations

Conditions:
Temperature:-40℃ to +250℃                                                                                                                      Pressure:≤1.2MPa                                                                                                                                   Speed:≤15m/s                                                                                                                                         Materials:
Stationary Ring:Silicon Carbide Reaction Bonded,Ceramic(Alumina),Silicon Carbide   Sintered Pressureless
Rotary Ring:Antimony Impreg. Carbon Graphite,Resin Impregnated Carbon Graphite(Furan),Silicon Carbide Reaction Bonded,Silicon Carbide Sintered Pressureless
Secondary Seal:Pure PTFE
Spring and Metal Parts:Stainless Steel,Stainless Steel,Hastelloy C-4 Alloy
Seat Type:                                                                                                                                                             Standard:TB16                                                                                                                                                                  Alternative:TBN,TBT21                                                                                                                                              Applications:Strong corrosive fluids
