Product Detail

Model No.: TB1527

Standard or Nonstandard: Standard

Material: Metal

Temperature: -20℃ to +180℃

Speed: ≤15m/s

Rotary Ring: Carbon, Silicon Carbide

Spring and Metal Parts: Steel

Standard: TB24DINL

Means of Transport: Ocean,Air

Style: Mechanical Seal

Brand Name: yicasting

Pressure: ≤1.0MPa

Stationary Ring: Ceramic, Silicon Carbide,TC

Secondary Seal: NBR,EPDM,Viton

Applications: Clean water,sewage water,oi...

Alternative: TBG6,TBG9

Pressure: ≤1.0MPa
Seat Type:
Standard:TB24DINL
Alternative:TBG6,TBG9
for industrial pump

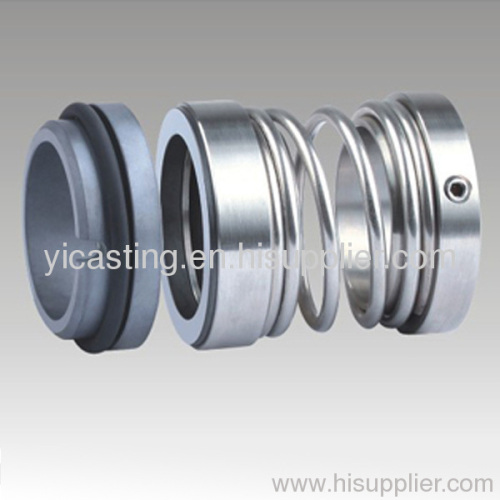

product name:TB1527 can replace the mechanical seal of Burgmann and John Crane

drawing of TB1527 can replace the mechanical seal of Burgmann and John Crane

size of TB1527 can replace the mechanical seal of Burgmann and John Crane

1. Operational Conditions:
Temperature:-20℃ to +180℃
Pressure: ≤1.0MPa
Speed: ≤15m/s
2. Materials:
Stationary Ring:Ceramic, Silicon Carbide,TC
Rotary Ring:Carbon, Silicon Carbide
Secondary Seal:NBR,EPDM,Viton
Spring and Metal Parts:Steel
3. Seat Type:
Standard:TB24DINL
Alternative:TBG6,TBG9
4. Applications:for use in oil or chemical flow pumps,vessel pumps and so on.

product: TB1527 can replace the mechanical seal of Burgmann and John Crane
