Product Detail

Model No.: MG1

Style: Mechanical Seal

Brand Name: yicasting

Pressure: ≤1.2MPa

Stationary Ring: Ni-binder Tungsten Carbide,...

Secondary Seal: Fluorocarbon Rubber(Viton),...

Standard or Nonstandard: Standard

Material: Metal

Temperature: -20℃ to +120℃

Speed: ≤10m/s

Rotary Ring: Resin Impregnated Carbon Gr...

Spring and Metal Parts: Stainless Steel,Stainless S...

Replacement to:
Burgmann MG1 seal / MG12 seal /MG13 seal/MGS20 seal & G60 stationary
Aesseal B02/B012/B013 seal

product name:Burgmann MG1 seal / MG12 seal /MG13 seal/MGS20 replacement seal

Replacement to:

Burgmann MG1 seal / MG12 seal /MG13 seal/MGS20 seal & G60 stationary

Aesseal B02/B012/B013 seal

Flowserve Pac-Seal 190 / Pac-Seal 192/ Pac-Seal 193

Hecker HN 410SU / Hecker HN 410KU / Hecker HN 410NU

Roten L3 / Roten L3k / Roten L3

Vulcan 19 / Vulcan 192/ Vulcan 193

Operations Conditions:
Temperature:-20℃ to +120℃
Pressure:≤1.2MPa
Speed:≤10m/s

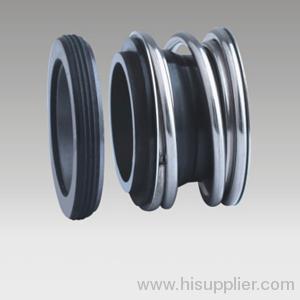

product of Burgmann MG1 seal / MG12 seal /MG13 seal/MGS20 replacement seal

drawing of Burgmann MG1 seal / MG12 seal /MG13 seal/MGS20 replacement seal

size of Burgmann MG1 seal / MG12 seal /MG13 seal/MGS20 replacement seal

Seat Type:
Standard:TBCG60
Alternative:TBCT20,TBG6,TBG9

Materials:
Stationary Ring:,Ni-binder Tungsten Carbide,Silicon Carbide Reaction Bonded,Ceramic(Alumina),Silicon Carbide Sintered Pressureless
Rotary Ring:Resin Impregnated Carbon Graphite(Furan),Antimony Impreg. Carbon Graphite,Silicon Carbide Sintered Pressureless,Silicon Carbide Reaction Bonded Secondary Seal:Fluorocarbon Rubber(Viton),Nitrile(NBR),Ethylene Propylene(EPDM)
Spring and Metal Parts:Stainless Steel,Stainless Steel

Applications:Clean Water,Sewage Water,Oil and other moderately corrosive fluids.
