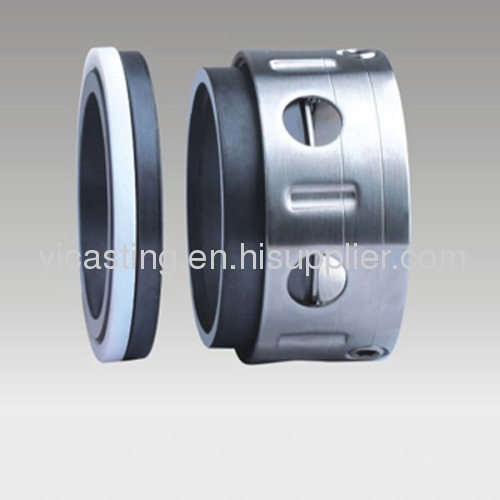

product name:TB9 Elastomer bellow Mechanical seals for industrial pump

Operations Conditions:
Temperature:-40℃ to +250℃                                                                                                                      Pressure:≤1.2MPa                                                                                                                                   Speed:≤15m/s

Materials:
Stationary Ring:Silicon Carbide Reaction Bonded,Ceramic(Alumina),Silicon Carbide   Sintered Pressureless
Rotary Ring:Antimony Impreg. Carbon Graphite,Resin Impregnated Carbon Graphite(Furan),Silicon Carbide Reaction Bonded,Silicon Carbide Sintered Pressureless
Secondary Seal:Pure PTFE
Spring and Metal Parts:Stainless Steel,Stainless Steel,Hastelloy C-4 Alloy

Seat Type:                                                                                                                                                             Standard:TB16                                                                                                                                                                  Alternative:TBN,TBT21                                                                                                                                              Applications:Strong corrosive fluids


TB9 Elastomer bellow Mechanical seals for industrial pump, for industrial pump, replace the mechanical seal of Burgmann and John Crane

product:TB9 Elastomer bellow Mechanical seals for industrial pump


drawing


Size
