TB301 Elastomer bellow Mechanical seals from China manufacturer

Payment Terms:	T/T,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TB301

Standard or Nonstandard: Standard

Material: Metal

Temperature: -20℃ to +120℃

Speed: 10m/s

Applications: Clean Water

Means of Transport: Ocean,Air

Style: Mechanical Seal

Brand Name: yicasting

Pressure: 0.6MPa

Stationary Ring: Ceramic(Alumina),Silicon Ca...

Spring and Metal Parts: Stainless Steel

If you are used to use the die casting and mechanical seal, then our goods must be meet your requirements.

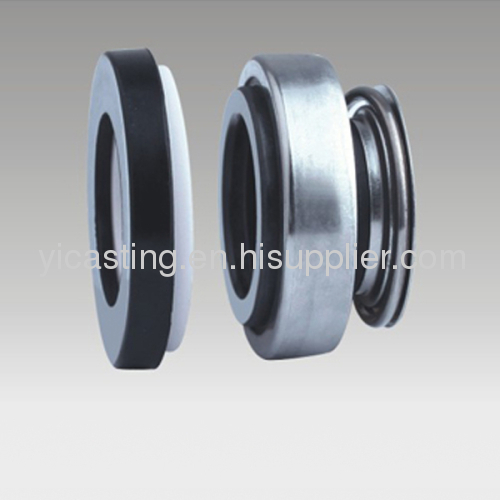

product name:TB301 Elastomer bellow Mechanical seals for industrial pump

Operations Conditions:
Temperature:-20℃ to +120℃                                                                                                                      Pressure:≤0.6MPa                                                                                                                                   Speed:≤10m/s                                                                                                                                         Materials:
Stationary Ring:Ceramic(Alumina),Silicon Carbide Reaction Bonded
Rotary Ring:Q5,Resin Impregnated Carbon Graphite(Furan),Silicon Carbide Reaction Bonded
Secondary Seal:Fluorocarbon Rubber(Viton),Nitrile(NBR),Ethylene Propylene(EPDM)
Spring and Metal Parts:Stainless Steel
Seat Types:                                                                                                                                                                                                                                                                                                                                                                                              Applications:Clean Water

TB301 Elastomer bellow Mechanical seals for industrial pump,for blower pump, diving pump,circulating pump, replace the mechanical seal of Burgmann and John Crane
