TB210 Elastomer bellow Mechanical seals from China manufacturer

Payment Terms:	T/T,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TB210

Standard or Nonstandard: Standard

Material: Metal

Temperature: -20℃ to +120℃

Speed: 15m/s

Applications: Clean Water,Sewage Water,Oi...

Means of Transport: Ocean,Air

Style: Mechanical Seal

Brand Name: yicasting

Pressure: 1.8MPa

Stationary Ring: Silicon Carbide Reaction b...

Spring and Metal Parts: Stainless Steel,Stainless S...

for industrial pump, replace the mechanical seal of John Crane 2100
Die casting/mechanical seals

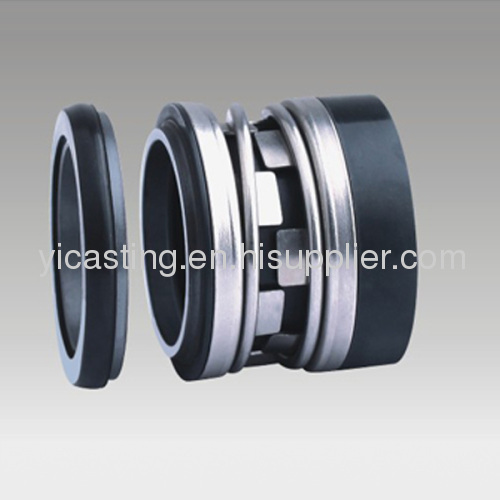

product name:TB210 Elastomer bellow Mechanical seals for industrial pump

TB210 Elastomer bellow Mechanical seals for industrial pump, for industrial pump, replace the mechanical seal of John Crane 2100

Product type:
For industrial pump, blower pump, diving pump,circulating pump mechanical seal, replace the mechanical of Burgmann and John Crane mechanical seal

Keywords:
For industrial pump, blower pump, diving pump,circulating pump mechanical seal, replace the mechanical of Burgmann and John Crane mechanical seal, Industrial Pump Seal

Operations Conditions:
Temperature:-20℃ to +120℃                                                                                                                      Pressure:≤1.8MPa
Speed:≤15m/s
                                                                                                                                         Materials:
Stationary Ring:Ceramic(Alumina),Silicon Carbide Reaction Bonded,Silicon Carbide   Sintered Pressureless,Ni-binder Tungsten Carbide
Rotary Ring:Resin Impregnated Carbon Graphite(Furan),Antimony Impreg. Carbon Graphite,Silicon Carbide Sintered Pressureless,Silicon Carbide Reaction Bonded
Secondary Seal:Nitrile(NBR),Ethylene Propylene(EPDM),Fluorocarbon Rubber(Viton)
Spring and Metal Parts:Stainless Steel,Stainless Steel

Seat Type:                                                                                                                                                             Standard:TBL210                                                                                                                                                                  Alternative:TBG60,TBBS                                                                                                                                               Applications:Clean Water,Sewage Water,Oil and other moderately corrosive fluids.

product:TB210 Elastomer bellow Mechanical seals for industrial pump
drawing

Size
