Product Detail

Model No.: TB70

Standard or Nonstandard: Standard

Material: Metal

Temperature: -30℃ to +200℃

Speed: 15m/s

Secondary Seal: Nitrile(NBR),Ethylene Propy...

Spring and Metal Parts: Stainless Steel,Stainless S...

Means of Transport: Ocean,Air

Style: Mechanical Seal

Brand Name: yicasting

Pressure: ≤0.6MPa

Stationary Ring: Silicon Carbide Reaction B...

Applications: Clean Water,Sewage Water,Oi...

Temperature:
Temperature:-30℃ to +200℃
Speed:≤15m/s

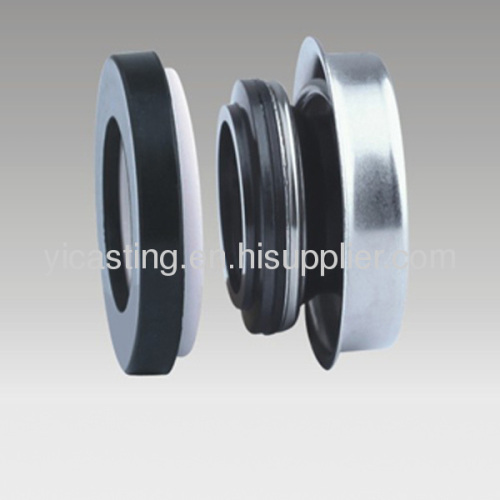

product name:shaft seal in pump for Oil and other moderately corrosive fluids
for blower pump, diving pump,circulating pump,for blower pump, diving pump,circulating pump, replace the mechanical seal of Burgmann and John Crane

size of shaft seal in pump for Oil and other moderately corrosive fluids

                                                                                                                                                                                                                                                                                                                                      Applications:Clean Water,Sewage Water,Oil and other moderately corrosive fluids.

product name:shaft seal in pump for Oil and other moderately corrosive fluids

Operations Conditions:
Temperature:-30℃ to +200℃                                                                                                                      Pressure:≤0.6MPa                                                                                                                                   Speed:≤15m/s

Materials:
Stationary Ring:Silicon Carbide Reaction Bonded,Ni-binder Tungsten Carbide,Ceramic(Alumina)
Rotary Ring:Silicon Carbide Reaction Bonded,Resin Impregnated Carbon Graphite(Furan),Ni-binder Tungsten Carbide
Secondary Seal:Nitrile(NBR),Ethylene Propylene(EPDM),Fluorocarbon Rubber(Viton)
Spring and Metal Parts:Stainless Steel,Stainless Steel

drawing of shaft seal in pump for Oil and other moderately corrosive fluids
